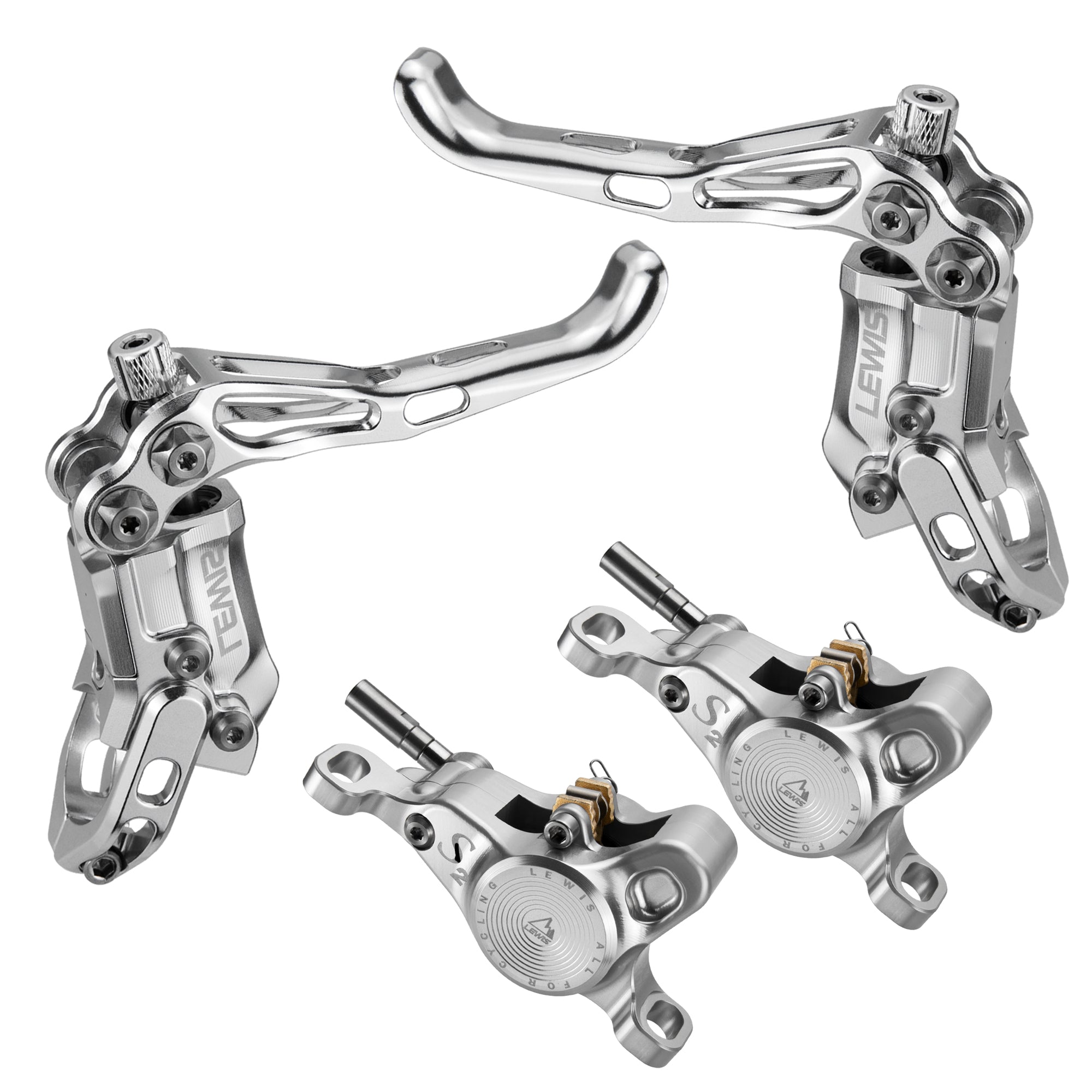

Lewis LV-S2 2 Piston Hydraulic Bicycle Disc Brake Kit

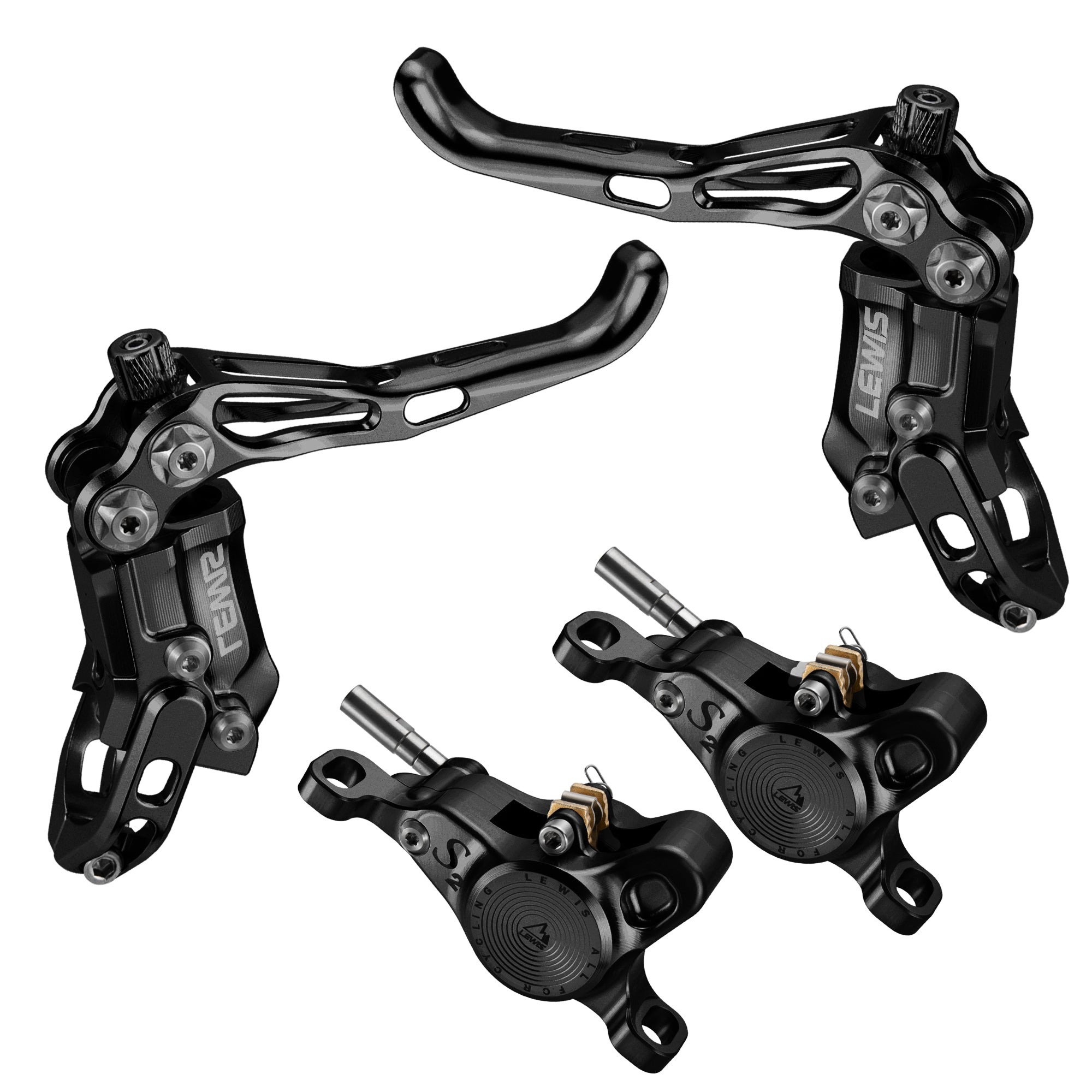

***Note the laser etched lettering on the black calipers looks like the laser etching on the black levers (this was an error in the photo)

Lewis LV-S2 Hydraulic Disc Brakes

Ultra-Light • Dual-Adjust • Race-Tuned Control

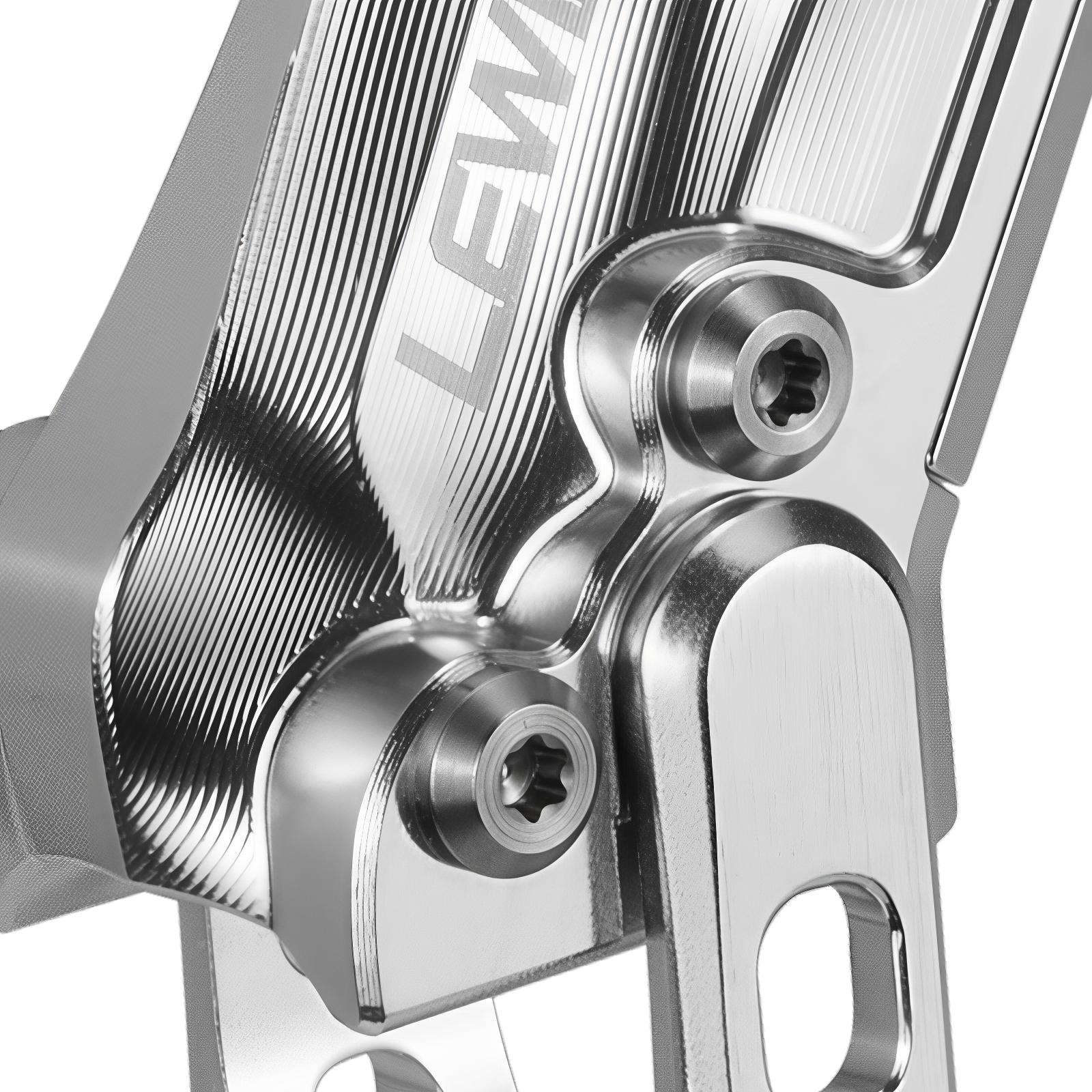

The all-new Lewis LV-S2 redefines what’s possible from a lightweight two-piston brake. Designed for XC, trail, and dirt-jump riders who want high-end feel without the premium price, the LV-S2 delivers exceptional power, modulation, and control in an ultra-compact CNC-machined package. Built from 7075-T6 aluminum and engineered with Lewis’s patented 2-in-1 dual adjustment system, it’s the perfect balance of performance, simplicity, and precision.

---

Lightweight Precision Meets Serious Power

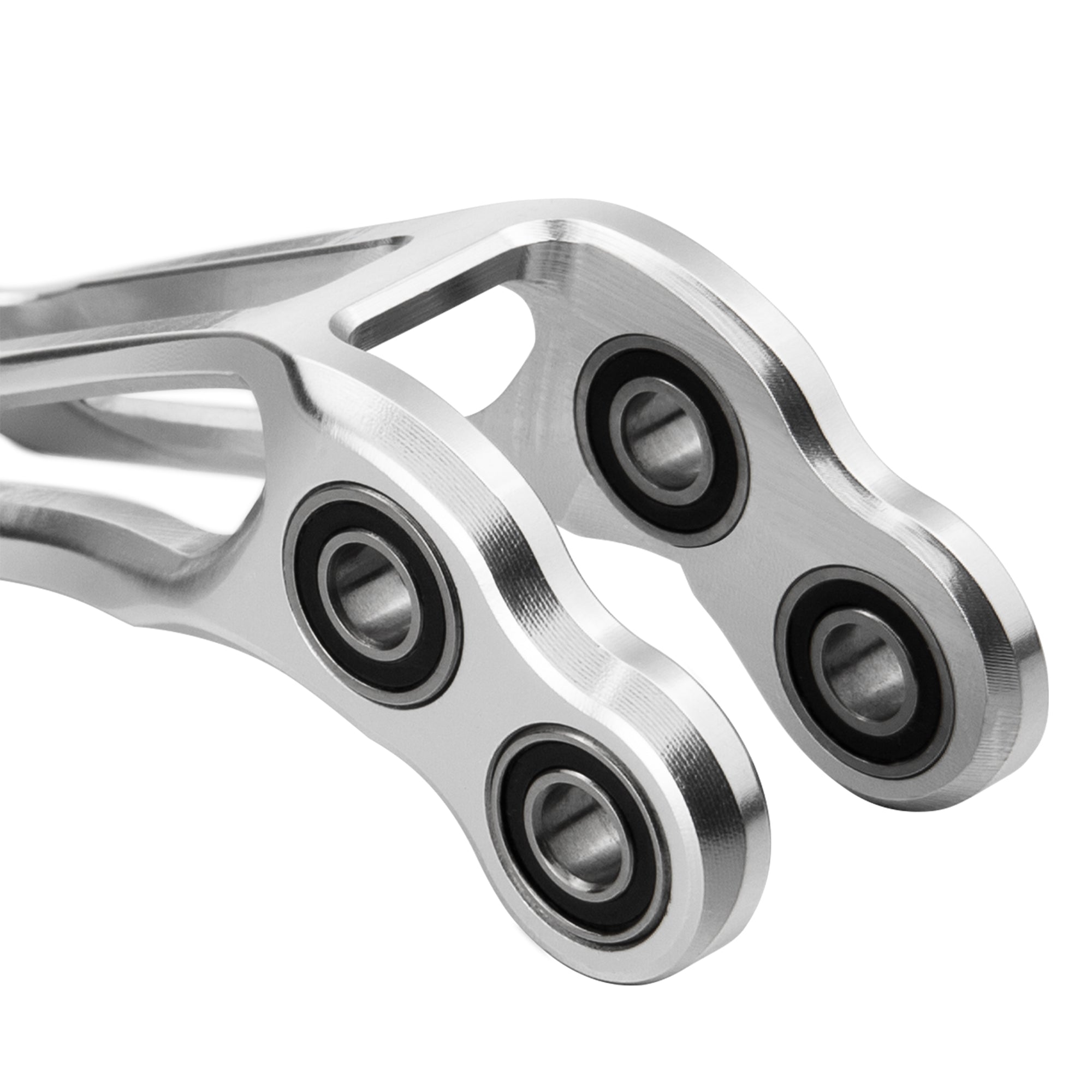

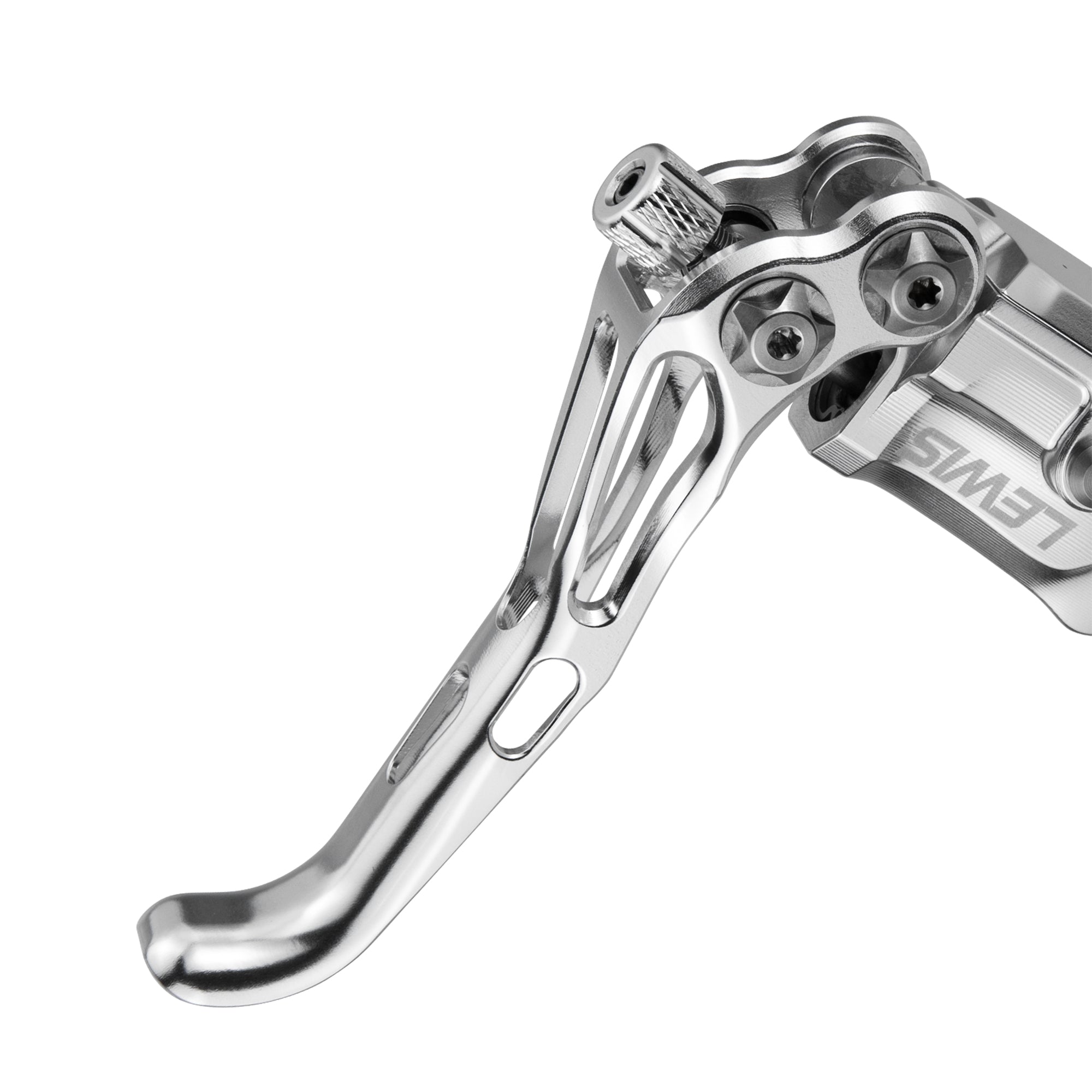

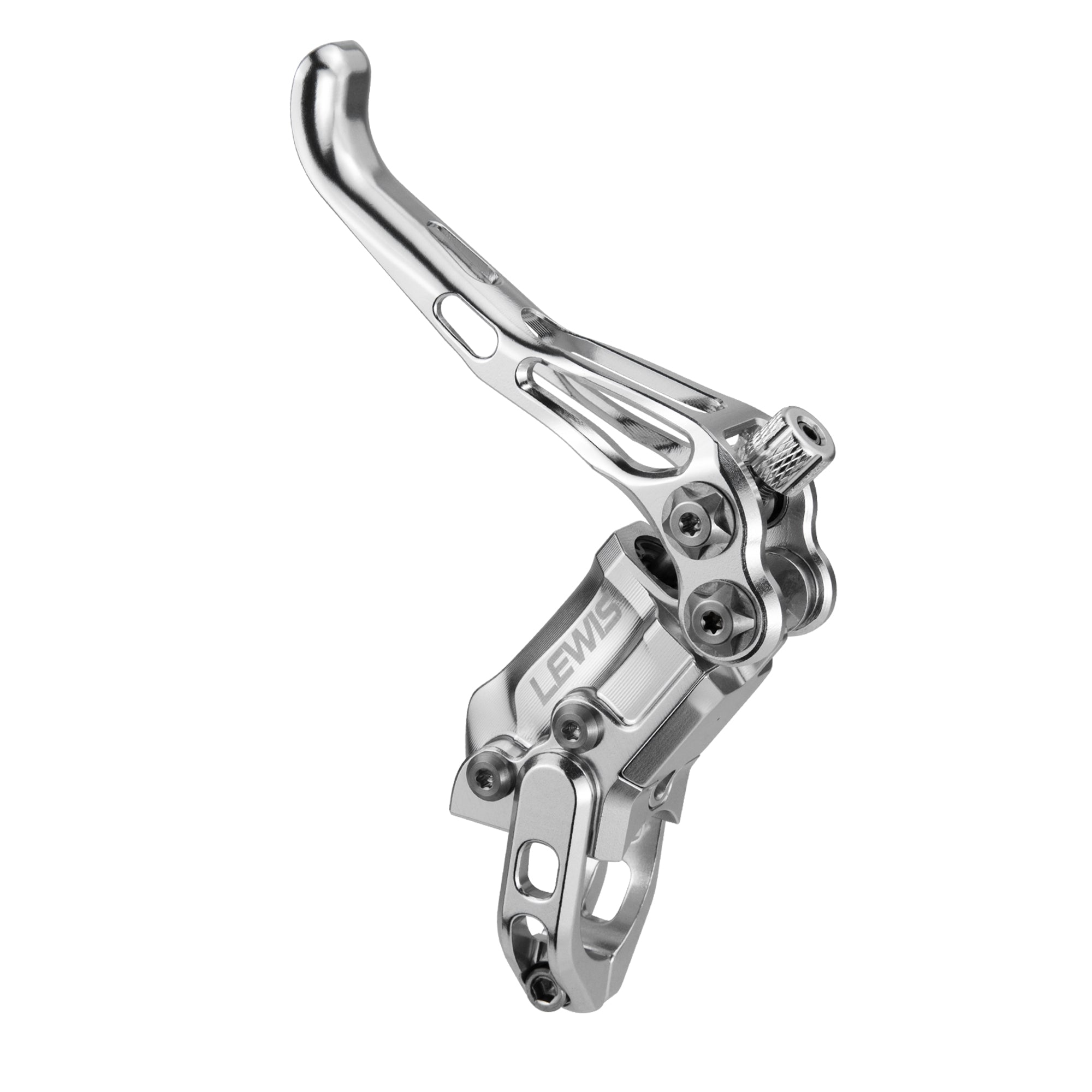

Now just weighing 300 g per set (without hose and pads), the LV-S2 is one of the lightest fully hydraulic systems in its class—yet it hits far above its weight. The new 2-in-1 lever design provides independent reach and bite-point adjustment, allowing you to fine-tune your lever feel on the fly. Four sealed cartridge bearings inside each lever pivot deliver an ultra-smooth, consistent pull, while the axial master cylinder keeps your cockpit clean and low-profile.

---

Engineered Caliper Design

The LV-S2 caliper uses dual 21 mm stainless-steel pistons to generate powerful, predictable braking force. Through continuous testing and refinement, Lewis reduced piston height and increased inner wall thickness while trimming overall body mass—resulting in a caliper that’s lighter, stiffer, and stronger. The result is rock-solid braking feel and confidence even in high-stress, high-heat conditions.

---

Built to Perform, Built to Last

A Primary + Secondary port system simplifies bleeding and improves consistency over time. The Kevlar-reinforced hoses and mineral-oil fluid reduce maintenance while maintaining lever feel in all weather. From race day to weekend laps, the LV-S2 brings premium-grade performance to any lightweight build.

---

What’s in the Box

• Front & Rear LV-S2 Caliper + Lever Assemblies — pre-bled and ready to install

• Mounting Hardware — stainless bolts + washers

• 90 cm Front / 165 cm Rear Kevlar Brake Hoses — trim to fit

• Brake Pads  — high heat tolerance and consistent bite

• User Manual — installation + maintenance guide

Sold in Right/Rear and Left/Front configurations (hoses can be swapped if desired).

---

Why You’ll Love It

• Featherweight Construction — Only 300 g per set (without hose + pads)

• 2-in-1 Dual Adjustment — Fine-tune reach and bite-point independently

• 7075-T6 CNC Aluminum — Lightweight, rigid, and beautifully finished

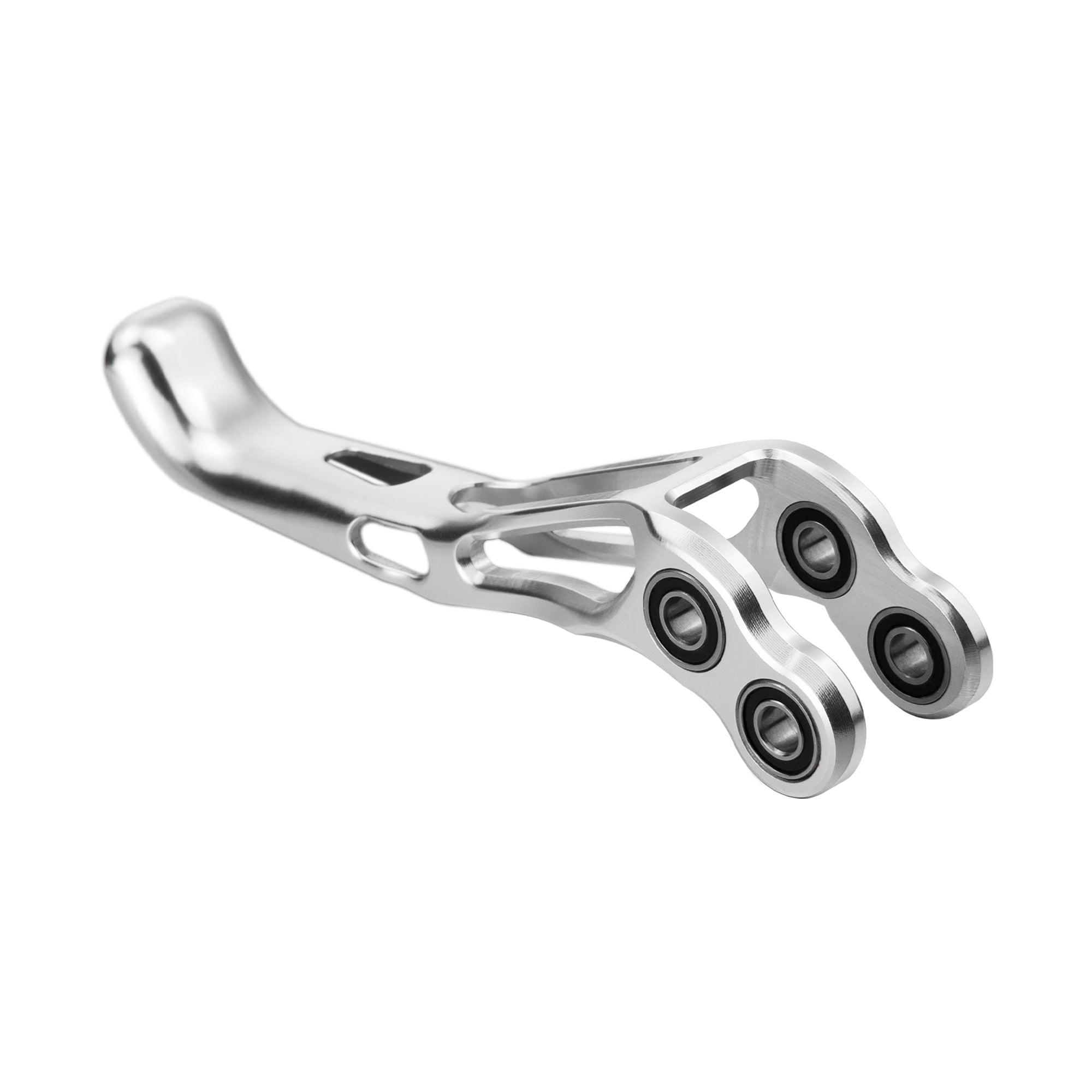

• Bearing-Driven Lever Action — Four pivot bearings for ultra-smooth control

• Refined Caliper Design — Dual 21 mm pistons for strong, predictable braking

• Optimized Heat Dissipation — Improved wall thickness and piston geometry

• Quick, Clean Bleeding — Primary + Secondary ports for easier maintenance

• Mineral Oil System — Safe, low-maintenance, and long-lasting

---

The Bottom Line

The LV-S2 is proof that high-end feel doesn’t have to come with a high-end price. It’s lighter, stronger, smoother, and more adjustable than ever—offering precise modulation and powerful braking in one of the most refined XC and trail systems Lewis has ever made.

LV-S2 — Lightweight performance. Heavyweight control.
